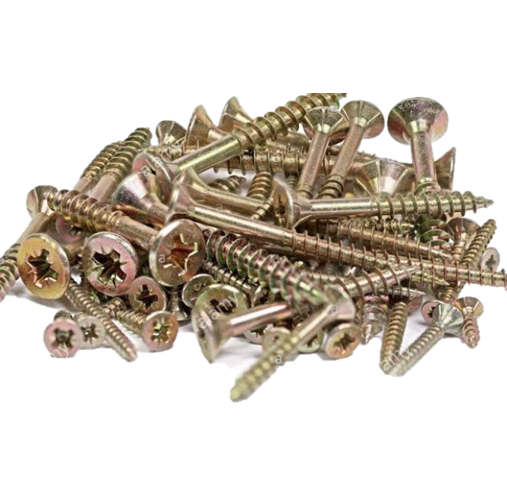

CHIPBOARD SCREWS


FINISH  Electro Galvanized and Square Drive

GRADE  Pozi Yellow Passivated \ Stainless Steel

Square drive also available

Length (mm) No.4 (3mm) No.6 (3.5mm) No.8 (4mm) No.10 (5mm) No.12 (5.5mm) No.14 (5.5mm)
10 *
12 * *
16 * * *
20 * * *
25 * * * *
30 * * *
35 * * *
40 * * * * *
45 * *
50 * * * * *
60 * * * *
70 * *
75 * * * *
90 * * *
100 * * *
Back to Top

COUNTERSUNK POZI SKIRTING SCREW


Available in black

Length (mm) No.8 (4mm)
45 *
55 *
Back to Top

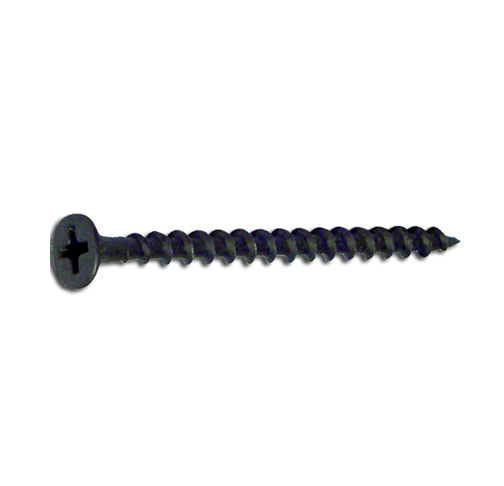

DRY WALL SCREWS


Available in fine and coarse thread

Length (mm) No.6 (3.5mm) No.8 (4mm)
19 *
25 * *
28 *
32 * *
41 * *
45 *
75 *
Back to Top

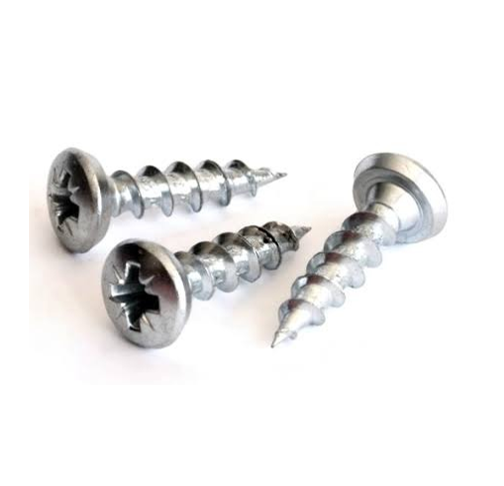

G SCREW


FINISH  Electro galvanised

length (mm) No.10 (5mm)
16 *
19 *
25 *
30 *
40 *
Back to Top

MACHINE SCREWS-PAN & COUNTERSUNK SLOTTED - DIN 84


GRADE  4 / Stainless Steel A2 & A4 / Brass

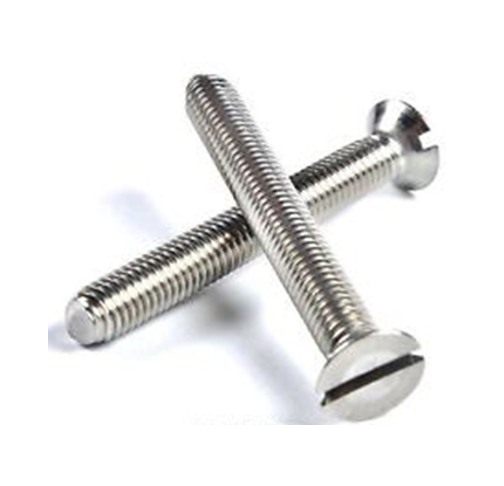

Slotted Countersunk Machine Screw also available

Length (mm) M2 M2.5 M3 M4 M5 M6 M8 M10
5 *
6 * * * *
8 * * * * *
10 * * * * *
12 * * * * *
16 * * * * *
20 * * * * * *
25 * * * * * *
30 * * * * * *
35 * * * * * *
40 * * * * * *
45 * * *
50 * *
55 * *
60 * *
65 * *
75 * *
Back to Top

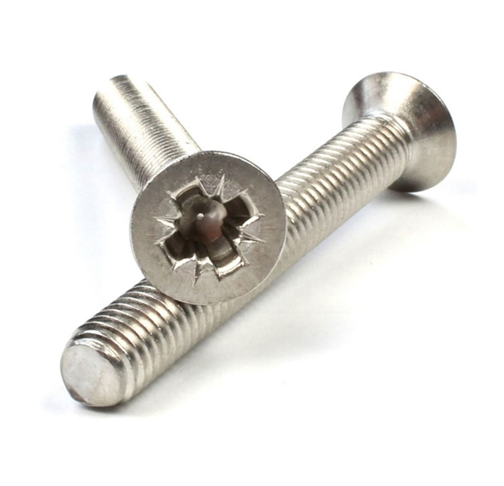

MACHINE SCREWS – PAN & COUNTERSUNK POZI - DIN 7985


GRADE  4 / Stainless Steel A2 & A4 / Brass

Countersunk Pozi Machine Screw also available

Length (mm) M2 M2.5 M3 M4 M5 M6
5 * * *
6 * * * *
8 * * * * *
10 * * * * *
12 * * * * * *
16 * * * * *
20 * * * *
25 * * * *
30 * * * *
35 * * *
40 * *
50 *
Back to Top

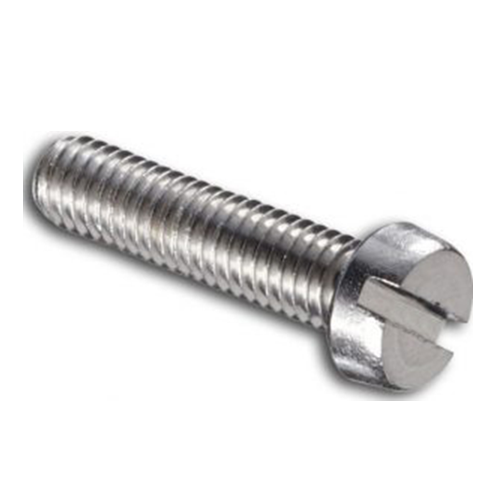

MACHINE SCREWS SLOTTED CHEESE HEAD - DIN  84


GRADE  4 / Stainless Steel A2 & A4 / Brass

FINISH  Electro Galvanised & Stainless Steel

Length (mm) M2 M2.5 M3 M4 M5 M6 M8 M10
4 * *
5 * * * *
6 * * * * *
8 * * * * *
10 * * * * *
12 * * * * *
14 * * * * *
16 * * * * *
18 * * * * *
20 * * * * * *
22 * * * * *
25 * * * * * *
30 * * * * * *
35 * * * * * *
40 * * * * * *
45 * * *
50 * *
55 * *
60 * *
65 * *
70 * *
75 * *
Back to Top

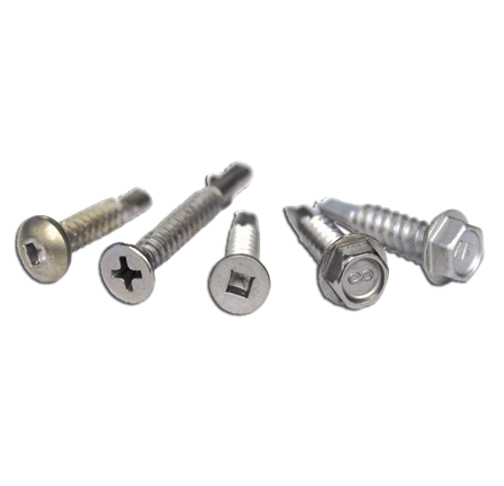

SELF-DRILLING TEK SCREWS.


Use with bonded washers for roofing


HEX HEAD SELF DRILLING TEK SCREW

Length (mm) Thread size Teeth per Inch
20 No.12 (ST 5.5) 14 TPI
25 No.12 (ST 5.5) 14 TPI
38 No.12 (ST 5.5) 14 TPI
57 No.12 (ST 5.5) 14 TPI
65 No.12 (ST 5.5) 14 TPI
90 No.12 (ST 5.5) 14 TPI

MUSHROOM HEAD SELF DRILLING TEK SCREW

(AMERICAN WAFER TEK)


FINISH Electro galvanised & yellow passivated

Length (mm) Thread size Teeth per Inch
16 No.10 (ST 4.8) 24 TPI
22 No.10 (ST 4.8) 24 TPI

COUNTERSUNK POZI SELF DRILLING TEK SCREW

 (WING TEK)

Length (mm) No.6 (3.5mm) No.8 (4mm) No.10 (5mm)
13 * * *
16 * * *
19 * * *
25 * * *

PAN POZI SELF DRILLING TEK SCREW

Length (mm) No.6 (3.5mm) No.8 (4mm)
13 *
16 *
19 *
25 *
Back to Top

SELF-TAPPING SCREWS

DIN    7981 – 7983, 7971 – 7973


FINISH Electro galvanised & yellow passivated

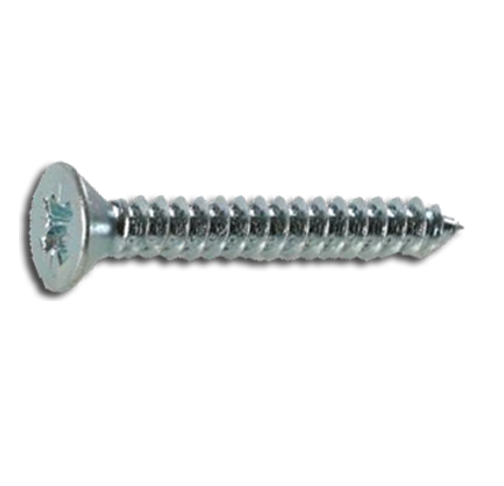

COUNTERSUNK POZI SELF TAPPING SCREW

Length (mm) No.4 (2.9mm) No.6 (3.5mm) No.8 (4.2mm) No.10 (4.8mm)
6.5 *
9.5 * *
13 * * * *
16 * * * *
19 * * * *
25 * * *
32 * * *
38 * * *
50 *

RAISED HEAD COUNTERSUNK POZI SELF TAPPING SCREW

Length (mm) No.4 (2.9mm) No.6 (3.5mm) No.8 (4.2mm) No.10 (4.8mm)
8 *
20 * * *
25 * * *
16 * * * *
19 * * * *
25 * * *
32 * * *
38 * * *
50 *

PAN HEAD POZI SELF TAPPING SCREW

Length (mm) No.4 (2.9mm) No.6 (3.5mm) No.8 (4.2mm) No.10 (4.8mm) No.12 (5.5mm)
6.5 * *
9.5 * * *
13 * * * *
16 * * * *
19 * * * *
25 * * * *
32 * * * *
38 * * * *
50 * *

PAN HEAD SLOTTED SELF TAPPING SCREW

Length (mm) No.4 (2.9mm) No.6 (3.5mm) No.8 (4.2mm) No.10 (4.8mm) No.12 (5.5mm)
6.5 * *
9.5 * * *
13 * * * *
16 * * * *
19 * * * *
25 * * * *
32 * * * *
38 * * *
50 * *

SLOTTED COUNTERSUNK SELF TAPPING SCREW

Length (mm) No.4 (2.9mm) No.6 (3.5mm) No.8 (4.2mm) No.10 (4.8mm)
6.5 * *
9.5 * *
13 * * *
16 * * *
19 * * * *
25 * * *
32 * * *
38 * *
50 * *
Back to Top

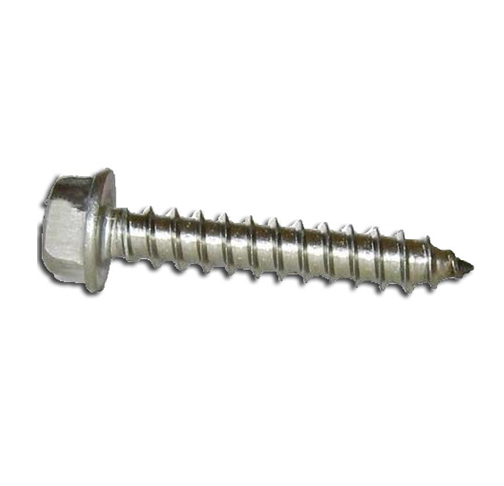

TOP SPEED ROOFING SCREW

Length (mm) M4.2 M4.8 M5.5 M6.3 M8
13 *
19 *
22 *
25 * * *
38 *
50 *
Back to Top

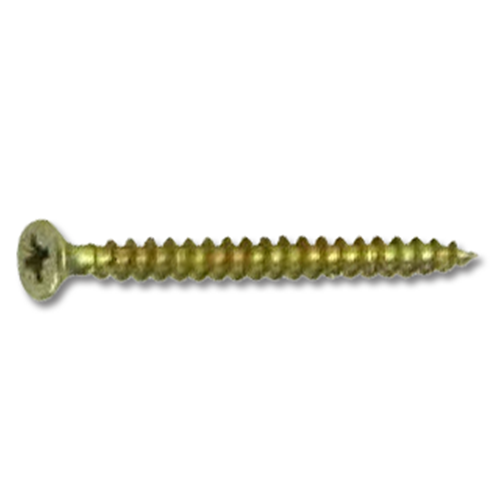

TYPE 17 CHIPBOARD SCREWS

(Self Cutting)


FINISH   Yellow passivated

Length (mm) No.4 (3mm) No.6 (3.5mm) No.8 (4mm) No.10 (5mm) No.12 (5.5mm) No.14 (5.5mm)
10 *
12 * *
16 * * *
20 * * *
25 * * * *
30 * * *
35 * * *
40 * * * * *
45 * *
50 * * * * *
60 * * * *
70 * *
75 * * * *
90 * * *
100 * * *
Back to Top

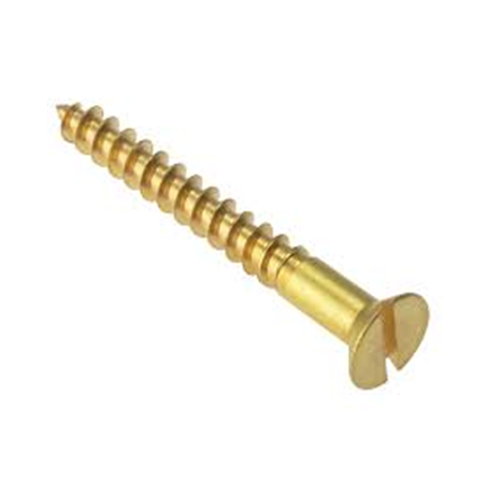

WOOD SCREWS - DIN 95,96,97


GRADE   4 / Brass plated / Solid Brass / Stainless Steel

Various wood screw sizes available in a rounded head

Length (mm) No.4 (3mm) No.6 (3.5mm) No.8 (4mm) No.10 (5mm) No.12 (5.5mm) No.14 (5.5mm)
12 * *
16 * * *
20 * * *
25 * * * *
30 * * *
35 * * *
40 * * * * *
45 * *
50 * * * * *
60 * * * *
70 * *
75 * * * *
