COACH SCREWS - DIN 571
Various applications, from light to heavy duty anchoring in brick or concrete
| Size of Coach Screw | Size of Wall Plug |
|---|---|
| M6x50 | 8mm |
| M6x60 | 8mm |
| M6x75 | 8mm |
| M8x60 | 10mm |
| M8x75 | 10mm |
| M8x100 | 10mm |
| M10x60 | 12mm |
| M10x75 | 12mm |
| M10x100 | 12mm |
| M12x100 | 14mm |
| M12x125 | 14mm |
DROP-IN ANCHORS
Various applications, mainly used for suspending items from concrete ceilings
Yellow Passivated Mild Steel & Stainless Steel 304 also available
| Size | Length | Drill Size | Drill Depth | Min/Max Screw in |
|---|---|---|---|---|
| 6mm | 25mm | 8mm | 27mm | 6 / 12mm |
| 8mm | 30mm | 10mm | 31mm | 8 / 13mm |
| 10mm | 40mm | 12mm | 42mm | 10 / 15mm |
| 12mm | 50mm | 16mm | 52mm | 12 / 18mm |
| 16mm | 65mm | 20mm | 67mm | 16 / 23mm |
| 20mm | 80mm | 25mm | 83mm | 20 / 23mm |

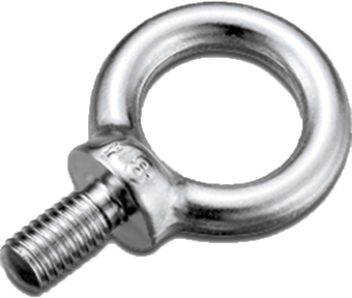

EYE BOLT - DIN 582
Various applications - 1kN = 102kg force
| Thread Dia | Base Dia | Eye Thickness | Inside Dia | Safe Load kN |
|---|---|---|---|---|
| 6mm | 20mm | 8mm | 19mm | 0.68 |
| 8mm | 20mm | 8mm | 19mm | 1.35 |
| 10mm | 25mm | 10mm | 24mm | 2.2 |
| 12mm | 29mm | 11mm | 29mm | 3.23 |
| 16mm | 34mm | 14mm | 34mm | 6.66 |
| 20mm | 40mm | 16mm | 39mm | 11.5 |
EYE NUT - DIN 582
Various applications - 1kN = 102kg force
| Thread Dia | Base Dia | Eye Thickness | Inside Dia | Safe Load kN |
|---|---|---|---|---|
| 6mm | 20mm | 8mm | 19mm | 0.68 |
| 8mm | 20mm | 8mm | 19mm | 1.35 |
| 10mm | 25mm | 10mm | 24mm | 2.2 |
| 12mm | 29mm | 11mm | 29mm | 3.23 |
| 16mm | 34mm | 14mm | 34mm | 6.66 |
| 20mm | 40mm | 16mm | 39mm | 11.5 |
| 24mm | 51mm | 20mm | 49mm | 17.2 |
| 30mm | 65mm | 25mm | 59mm | 32 |
NAIL-IN ANCHOR
Used for light duty anchoring applications. Using a good quality plug will give you a more secure fixture
| Anchor Size | Drill Size | Hole Depth |
|---|---|---|
| 5x36 | 5mm | 40mm |
| 5x45 | 5mm | 50mm |
| 6x35 | 6mm | 40mm |
| 6x42 | 6mm | 50mm |
| 6x55 | 6mm | 60mm |
| 6x70 | 6mm | 75mm |
| 8x60 | 8mm | 65mm |
| 8x80 | 8mm | 85mm |
| 8x100 | 8mm | 105mm |
| 8x120 | 8mm | 125mm |
| 10x100 | 10mm | 105mm |
| 10x135 | 10mm | 140mm |

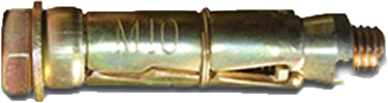

SHIELD ANCHOR BOLT
Various applications, from light to heavy duty anchoring in brick or concrete
Yellow Passivated Mild Steel & Stainless Steel 304, 1kN = 102kg force also available
| Bolt Size | Drill Size | Tension kN | Shear kN |
|---|---|---|---|
| 5x50 | 9mm | 0.5 | 0.4 |
| 6x55 | 12mm | 2.4 | 1.8 |
| 8x65 | 14mm | 4.4 | 3.3 |
| 10x75 | 16mm | 5.9 | 4.4 |
| 12x90 | 20mm | 9.3 | 6.9 |
| 16x135 | 25mm | 17.5 | 13.1 |
SLEEVE ANCHOR
Various applications, from light to heavy duty anchoring in brick or concrete.
Available in Yellow Passivated Mild Steel & Stainless Steel 304
1kN = 102kg force
| Bolt Size | Drill Size | Hole Depth |
|---|---|---|
| 6x40 | 6mm | 50mm |
| 6x60 | 6mm | 70mm |
| 8x40 | 8mm | 50mm |
| 8x65 | 8mm | 75mm |
| 8x85 | 8mm | 95mm |
| 10x40 | 10mm | 50mm |
| 10x50 | 10mm | 60mm |
| 10x75 | 16mm | 85mm |
| 10x100 | 10mm | 110mm |
| 10x125 | 10mm | 135mm |
| 12x60 | 12mm | 70mm |
| 12x75 | 12mm | 85mm |
| 12x100 | 12mm | 110mm |
| 12x130 | 12mm | 140mm |
| 16x65 | 16mm | 75mm |
| 16x110 | 16mm | 120mm |
| 18x150 | 16mm | 160mm |
| 20x75 | 20mm | 85mm |
| 20x110 | 20mm | 120mm |
| 20x150 | 20mm | 160mm |

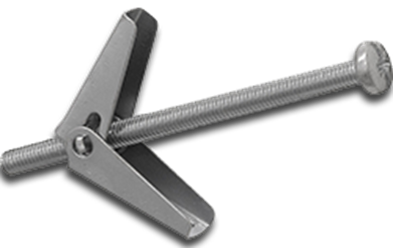

SPRING TOGGLE
Preferred Ceiling Fixing – perfect for plasterboard
| Screw Thickness | Screw Length | Drill Size |
|---|---|---|
| 4mm | 50mm | 11mm |
| 5mm | 50mm | 14mm |
| 6mm | 75mm | 18mm |
WALL PLUGS
Various applications, light duty anchoring
Can be used with self tapping screws and coach screws to secure items in brick and concrete.
| Plug Size | Hole Size | Hole Depth | Colour |
|---|---|---|---|
| 5x25 | 5mm | 30mm | Grey |
| 5.5x35 | 6mm | 40mm | Red |
| 6x30 | 6mm | 35mm | Grey |
| 7x35 | 7mm | 40mm | Grey |
| 7x40 | 7mm | 45mm | Brown |
| 6x40 | 8mm | 45mm | Grey |
| 10x 50 | 10mm | 55mm | Grey |
| 12x40 | 12mm | 60mm | Grey |
| 12x55 | 12mm | 60mm | Green |
| 12x95 | 12mm | 100mm | Blue |
| 14x75 | 14mm | 80mm | Grey |
WEDGE ANCHOR
Various applications, from light to heavy duty anchoring in concrete
Yellow Passivated Mild Steel & Stainless Steel 304, 1kN = 102kg force also available
| Bolt Size | Drill Size | Tension kN | Shear kN |
|---|---|---|---|
| 6x70 | 6mm | 2 | 1.9 |
| 8x60 | 8mm | 2.9 | 3.4 |
| 8x80 | 8mm | 2.9 | 3.4 |
| 10x95 | 10mm | 4.5 | 5.2 |
| 10x115 | 10mm | 4.5 | 5.2 |
| 12x80 | 12mm | 7 | 7.6 |
| 12x100 | 12mm | 7 | 7.6 |
| 12x135 | 12mm | 7 | 7.6 |
| 16x105 | 16mm | 10.9 | 12.7 |
| 16x140 | 16mm | 10.9 | 12.7 |
| 16x180 | 16mm | 10.9 | 12.7 |
| 20x125 | 20mm | 13.8 | 18.8 |
| 20x160 | 20mm | 13.8 | 18.8 |
| 24x250 | 24mm | 17.5 | 24 |
