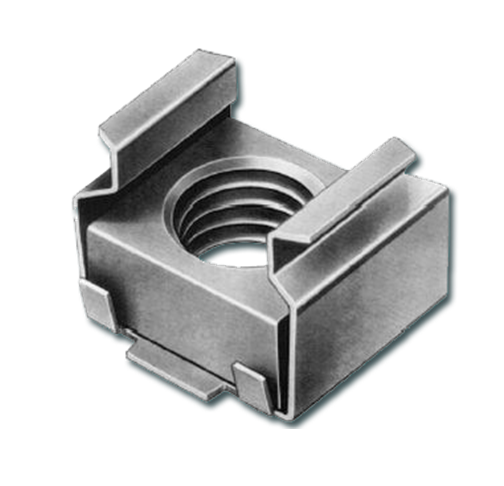

CAGED NUTS


FINISH - Electro Galvanised and Yellow Passivated


Diameter Zinc Plated Yellow�Passivated
M4 * *
M5 * *
M6 * *
M8 * *
M10 * *

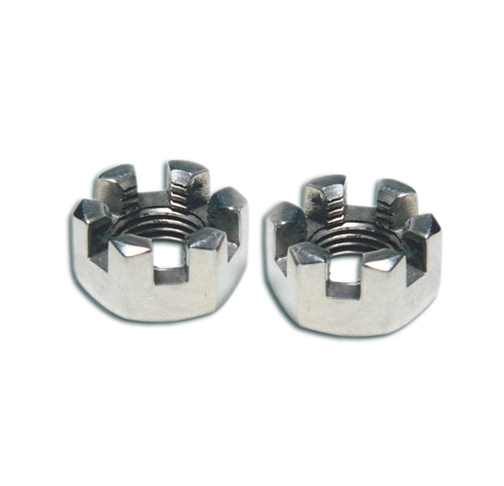

CASTLE NUTS - DIN 935


GRADE 8


Size (mm) Uncoated
M10x1.25 *
M12x1.25 *
M12x1.5 *
M14x1.5 *
M16x1.5 *
M18x1.5 *
M20x1.5 *
M22x1.5 *
M24x2 *
M24x1.5 *
M30x1.5 *
M30x2 *

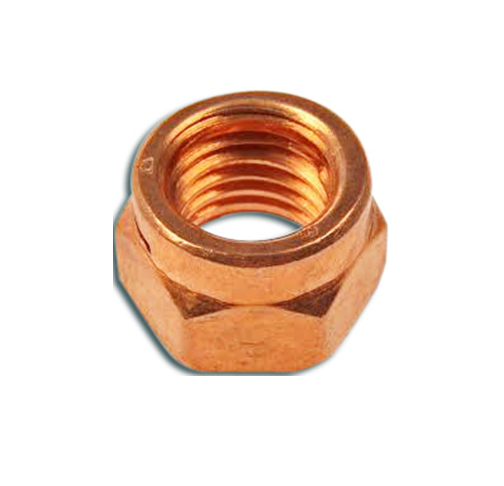

COPPER EXHAUST NUTS


Used with manifold studs


Size Thread Pitch (mm)
M6 1
M8 1.25
M8 1
M10 1.25
M10 1.5
M12 1.5

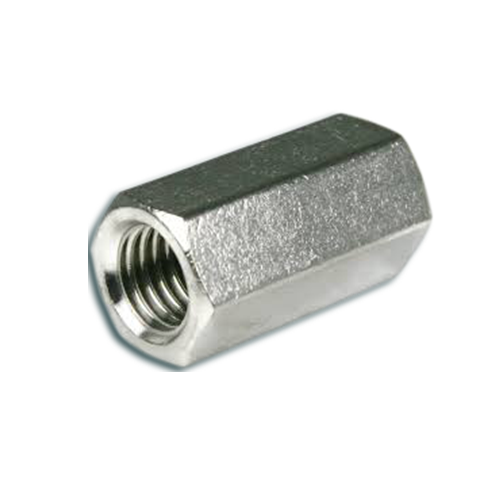

COUPLING NUTS - DIN 6334


FINISH       ELECTRO GALVANISED


Size Dimension
M6 6x25x10
M6 6x30x10
M8 8x25x13
M8 8x33x13
M10 10x20x17
M10 10x30x17
M12 12x30x19
M12 12x36x19
M12 12x50x19
M16 16x50x24
M20 20x60x30

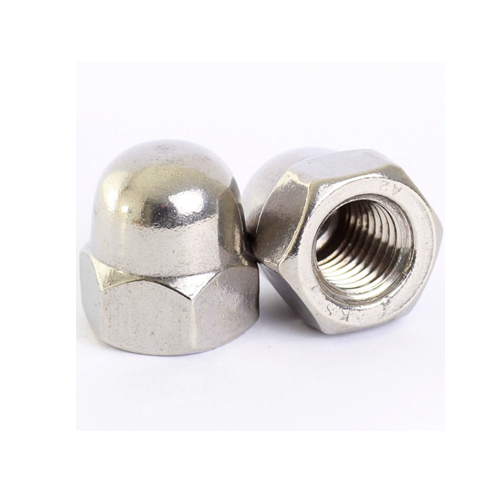

DOME NUTS - DIN 1587 / 917


GRADE       4 MILD STEEL / STAINLESS STEEL A2 & A4

FINISH       ELECTRO GALVANISED


Size Zinc Plated
M3 *
M4 *
M5 *
M6 *
M8 *
M10 *
M12 *
M14 *
M16 *
M18 *
M20 *

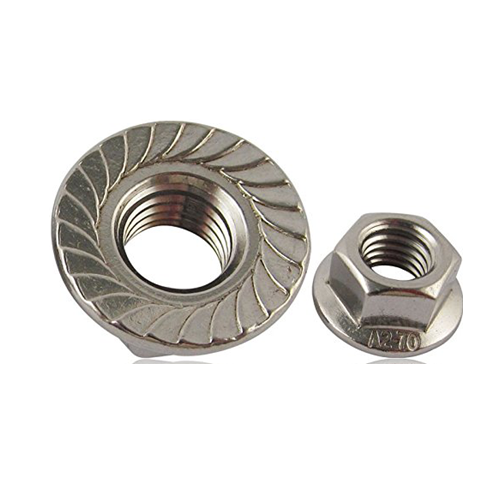

FLANGE NUTS - DIN 6923


Serrated & non-serrated

GRADE       8.8

FINISH       ELECTRO GALVANISED


Size (mm) Yellow Passivated
M6x1 *
M8x1.25 *
M10x1.5 *
M10x1.25 *
M12x1.25 *
M12x1.5 *
M14x1.5 *
M14x2 *
M16x1.5 *

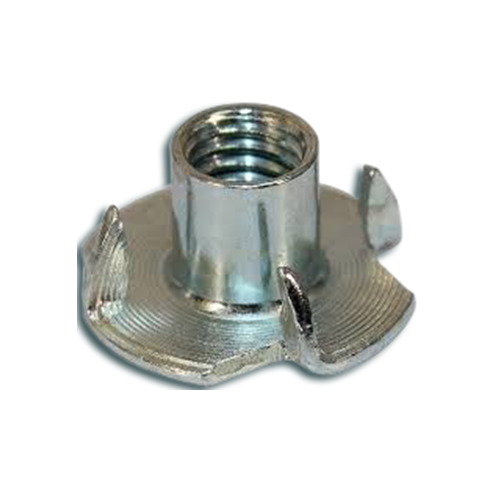

FURNITURE TEE NUTS



FURNITURE TEE NUTS – 4 PRONGS

FINISH       ELECTRO GALVANISED


Thread Size Length (mm)
M5 9
M6 9
M8 9
M10 11

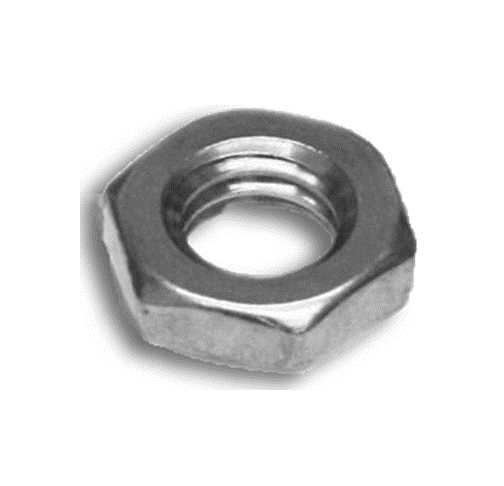

HALF LOCK NUTS - DIN 439

GRADE       Stainless Steel A2 & A4

FINISH       Electro Galvanized and Stainless steel


Diameter Plain Zinc Plated
M6 * *
M8 * *
M10 * *
M12 * *
M14 * *
M16 * *
M18 * *
M20 * *
M22 * *
M24 * *

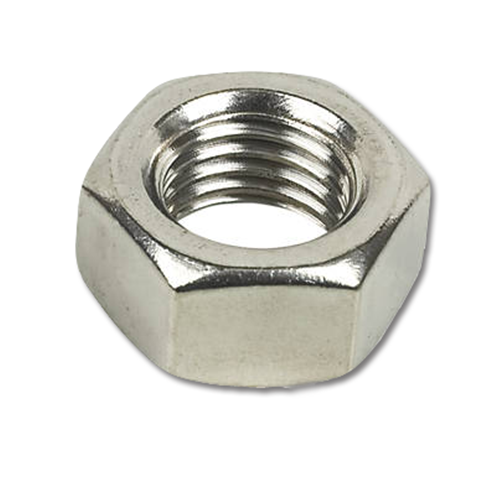

HEXAGON FULL NUTS - DIN  555 / 934

GRADE       4 / 8 / 10; Stainless Steel A2 & A4

FINISH       Black, Electro Galvanized, Brass, Nylon and Hot Dipped Galvanized

SERIES - METRIC, METRIC FINE, UNC, UNF inch


Diameter Plain Zinc Plated
M6 * *
M8 * *
M10 * *
M12 * *
M14 * *
M16 * *
M18 * *
M20 * *
M22 * *
M24 * *
M27 * *
M30 * *
M33 * *
M36 * *
M39 * *
M42 * *
M45 * *
M48 * *
M52 * *
M56 * *
M64 * *
M72 * *

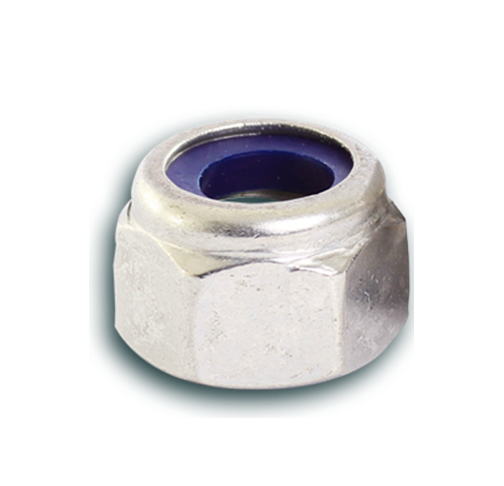

NYLOC & CLEVELOC SELF LOCKING NUTS


Nyloc - DIN - 985

GRADE            6 / STAINLESS STEEL A2 & A4


Size Zinc Plated
M6 *
M8 *
M10 *
M12 *
M14 *
M16 *
M18 *
M20 *
M22 *
M24 *
M27 *
M30 *
M33 *
M36 *
M39 *
M42 *
M45 *
M48 *

CLEVELOC SELF LOCKING NUT

Cleveloc -DIN - 980

SERIES - METRIC, METRIC FINE, UNC, UNF inch


Size Yellow Passivated
M5 *
M6 *
M8 *
M10 *
M12 *
M14 *
M16 *
M18 *
M20 *
M22 *
M24 *
M27 *
M30 *

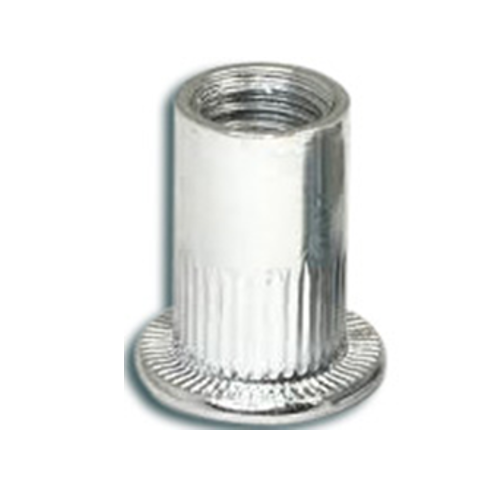

RIV NUTS


RIBBED & SMOOTH BODY / LARGE & STANDARD HEAD


Thread Size Hole Size
M3 5mm
M4 6mm
M5 7mm
M6 9mm
M8 11mm
M10 13mm

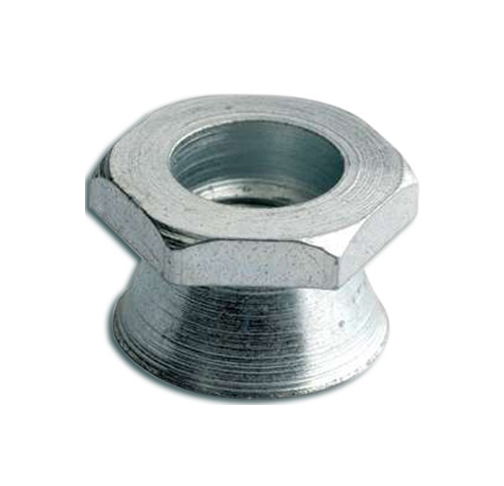

SHEAR NUTS


FINISH       ELECTRO GALVANISED


Sizes
M6
M8
M10
M12
M16

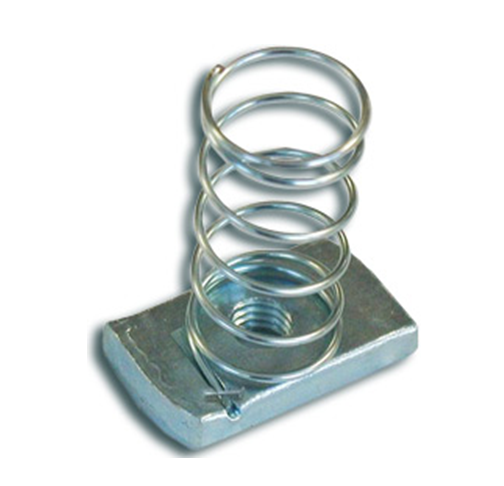

SPRING NUTS


FINISH - ELECTRO GALVANISED


Sizes
M6
M8
M10
M12

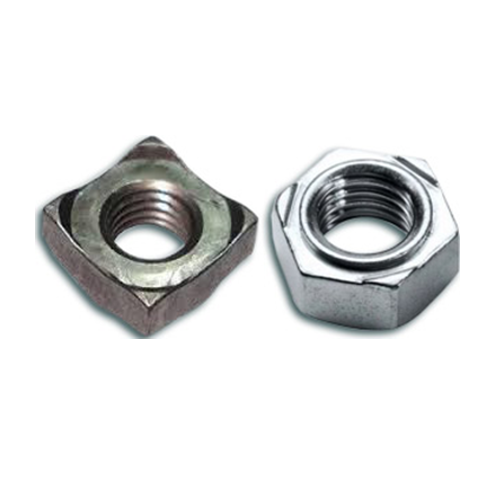

SQUARE & HEXAGON WELD NUTS

DIN  928 / 929


FINISH - Electro Galvanised


Sizes Mild Steel
M6 *
M8 *
M10 *
M12 *

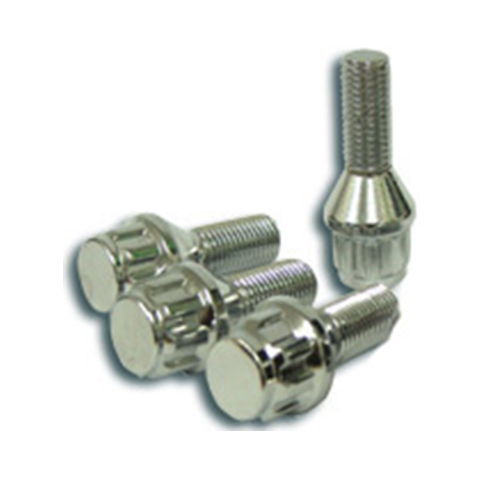

WHEEL NUTS – OPEN & CLOSED ENDED SIZES


FINISH       BLACK, ELECTRO GALVANISED & YELLOW PASSIVATED


Size Thread Pitch Type Hex Size (mm)
M12 1.25 Short/Long 21
M12 1.25 43Short/Long 19
M12 1.25 Short/Long 17
M12 1.5 Short/Long 21
M12 1.5 Short/Long 19
M12 1.5 Short/Long 17
M14 1.5 Short/Long 22

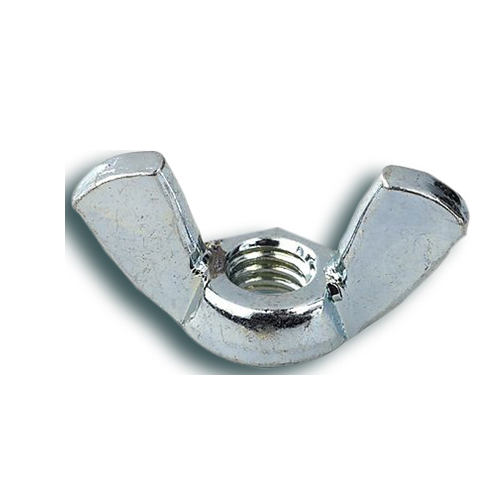

WING NUTS - DIN       315


GRADE       Mild Steel Gr4 \ Stainless Steel A2 & A4

FINISH       Electro Galvanised & Stainless Steel


Size Plain Zinc Plated Stainless Steel
M3 * * *
M4 * * *
M5 * * *
M6 * * *
M8 * * *
M10 * * *
M12 * * *
M14 * * *
M16 * * *
