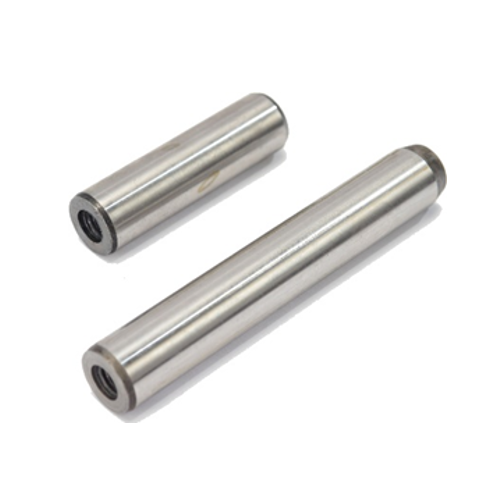

DOWEL PINS - DIN 6325


SERIES  Inch

Extractable Dowel Pins also available


Length (mm) 3mm 4mm 5mm 6mm 8mm 10mm 12mm
10 * * * *
12 * * * *
16 * * * * * *
18 * * * * * *
20 * * * * * * *
24 * * * * * * *
28 * * * * * * *
32 * * * * * * *
36 * * * * * * *
40 * * * * * * *
45 * * * *
50 * * * *
55 * * * *
60 * * * *
70 * * * *
80 * * * *
90 * * *
100 * * *

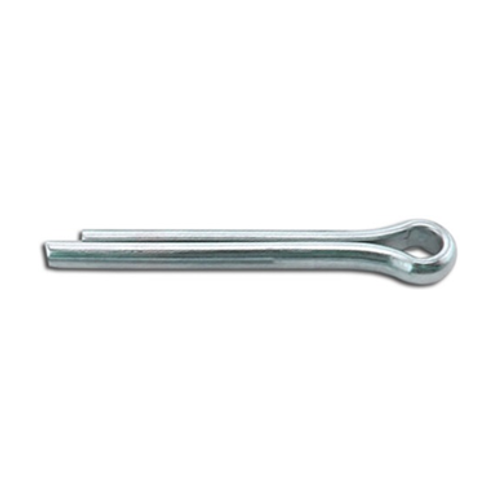

SPLIT PINS - DIN 94


Length (mm) Dia 1.6mm Dia 2mm Dia 2.5mm Dia 3.2mm Dia 4mm Dia 5mm Dia 6.3mm
12 * * * *
16 * * * *
20 * * * * *
25 * * * * * *
32 * * * * * * *
40 * * * * * * *
50 * * * *
63 * * *
71 * * *
80 *

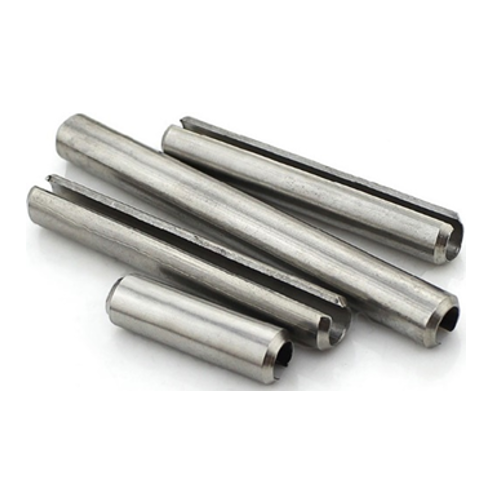

SPRING PINS - DIN 1481


SERIES  Inch


Length (mm) 1.5mm 2mm 3mm 4mm 4.5mm 5mm 6mm 8mm 10mm 12mm
10 *
12 *
16 * *
18 * *
20 * * * * * * * * * *
24 * * * * * * * * * *
26 * * * * * * * * * *
28 * * * * * * * * * *
30 * * * * * * * * *
32 * * * * * * * *
36 * * * * * * * *
40 * * * * * * * *
45 * * * * * * *
50 * * * * * * *
55 * * * * * * *
60 * * * * * * *
65 * * * * * *
70 * * * * * *
75 * * * * * *
80 * * * * * *
85 * * * * *
90 * * * * *
95 * * * * *
100 * * * *
120 * * *
