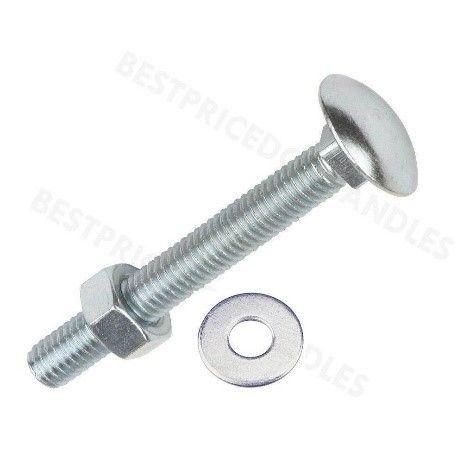

CUP SQUARE BOLT & NUT – DIN 603


GRADE  4.6 BS 4168 – ISO 7380 – Stainless Steel Grade A2 (304)

FINISH  Black, Electro Galvanized & Hot Dipped Galvanized.

Size (mm) M6 M8 M10 M12
20 * * * *
25 * * * *
30 * * * *
35 * * * *
40 * * * *
45 * * * *
50 * * * *
55 * * * *
65 * * * *
75 * * * *
90 * * * *
100 * * * *
115 * * *
125 * * *
140 * * *
150 * * *

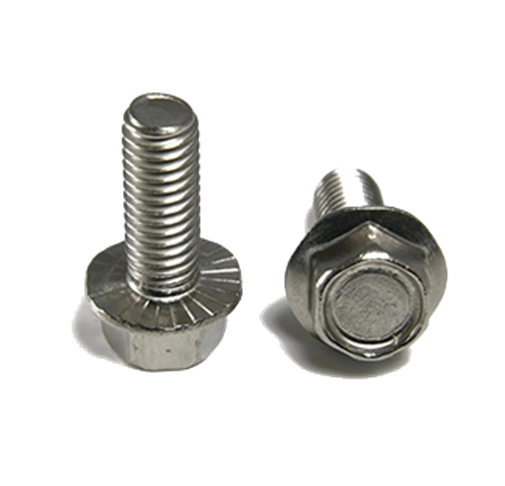

FLANGE BOLTS

With or without serration


A. Full Thread Yellow Passivated

       DIN      6921

       GRADE     8.8

       FINISH      Electro Galvanized

Size (mm) M6x1 M8x1.25 M10x1.5 M10x1.25 M12x1.25 M12x1.5
16 * * *
20 * * *
25 * * * * * *
30 * * * * * *
35 * * * *
40 * * * * * *
45 * * * *
50 * * * * *
60 * * *

B. Serrated

DIN                 6921

GRADE                12.9

FINISH                Black


Size (mm) M12x1.75 M12x1.5 M12x1.25 M14x1.5 M14x2 M16x1.5
30 * * * * * *
35 * * * * * *
40 * * * * * *
45 * * * * * *
50 * * * * * *
60 * * * * * *
70 * * *

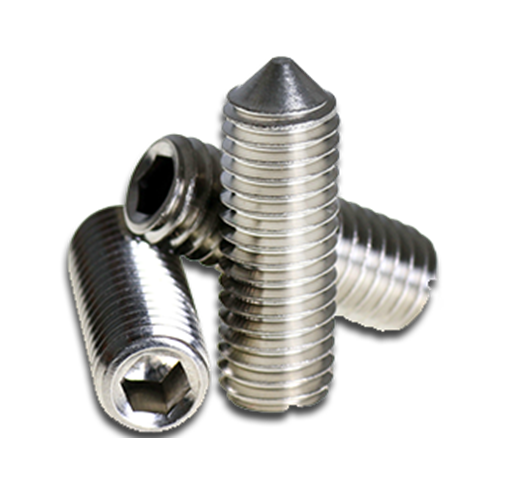

GRUB SCREWS - DIN 916


GRADE        12.9    ISO 4029

FINISH        Electro Galvanized

SERIES        Metric, UNC, UNF inch

Length(mm) M3 M4 M5 M6 M8
3 *
4 * *
5 * * *
6 * * * *
8 * * * * *
10 * * * * *
12 * * * * *
16 * * * * *
20 * * * * *
25 * * * * *
30 * * * *
35 * *
40 * * * *
45 * *
50 * *
Length(mm) M10 M12 M16 M20 M24
10 *
12 * *
16 * * *
20 * * * *
25 * * * *
30 * * * * *
35 * * * * *
40 * * * * *
45 * * * * *
50 * * * *
55 * * * *

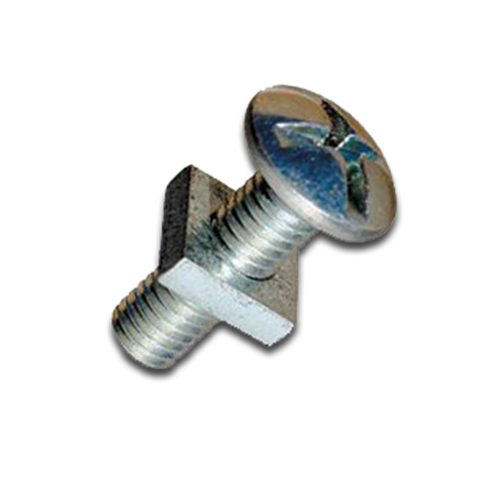

GUTTER BOLT & NUT

Sold with or without a square pressed nut


GRADE       4.6 Mild Steel

FINISH       Electro Galvanized

Bolt Size X Bolt Length
M6 X 12mm
M6 X 16mm
M6 X 20mm
M6 X 25mm
M6 X 30mm
M6 X 40mm
M6 X 50mm
M6 X 60mm
M6 X 75mm

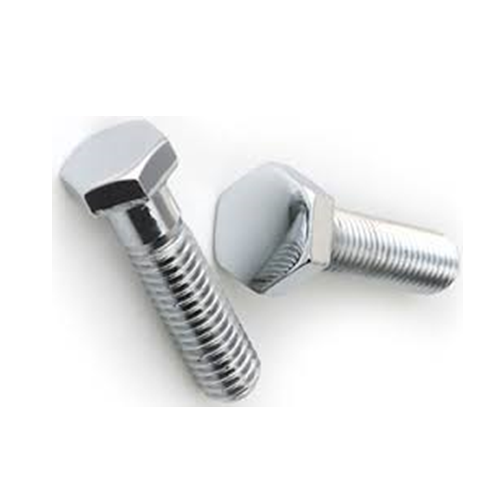

HEXAGON BOLTS - DIN 931


GRADE GR 8.8 / 10.9 – BS 4168 – ISO 7380

FINISH Mild Steel Black, Electro Galvanized, Hot Dipped Galvanized

SERIES Metric, UNC, UNF inch

Diameter Length (mm)
M6 30 x 80
M8 30x 160
M10 35 x 200
M12 35 x 200
M14 45 x 200
M16 45 x 200
M20 55 x 200
M24 65 x 200
M30 90 x 200

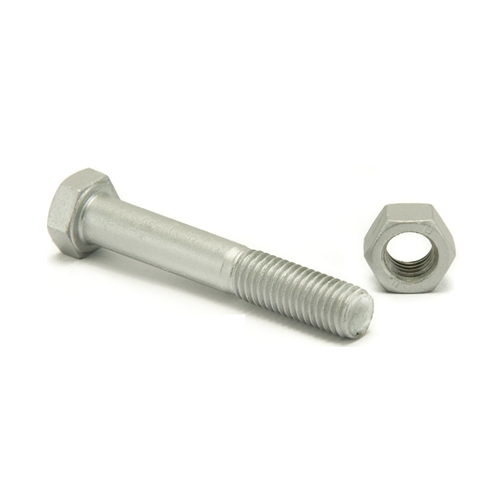

HEXAGON BOLT & NUT - DIN 601


FINISH Mild Steel Black, Electro Galvanized, Hot Dipped Galvanized


Size (mm) M6 M8 M10 M12 M16 M20 M24 M30
16 * *
20 * * * *
25 * * * * *
30 * * * * *
35 * * * * *
40 * * * * * *
45 * * * * * *
50 * * * * * * *
55 * * * * * * *
60 * * * * * * *
65 * * * * * * *
70 * * * * * *
75 * * * * * * * *
80 * * * * * *
90 * * * * * * *
95 * * * * * * *
100 * * * * * * *
115 * * * * * * *
125 * * * * * * *
140 * * * * * * *
150 * * * * * * *
165 * * * * * *
180 * * * * * *
200 * * * * * *
230 * * * * * *
255 * * * * *
275 * * * *
300 * * * *

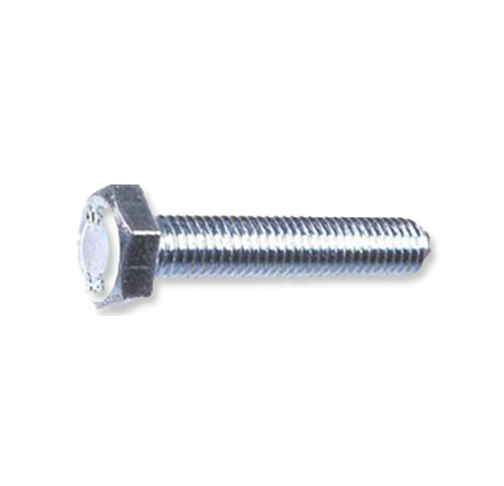

HEXAGON SET SCREW -DIN 933


GRADE 8.8 / 10.9 – BS 4168 – ISO 7380

FINISH Mild Steel Black, Electro Galvanized, Hot Dipped Galvanized

SERIES Metric, UNC, UNF inch

Diameter Length (mm)
M6 12 x 65
M8 12 x 120
M10 16 x 120
M12 20 x 120
M14 20 x 90
M16 20 x 90
M20 30 x 90
M24 35 x 90
M30 65, 75, 90

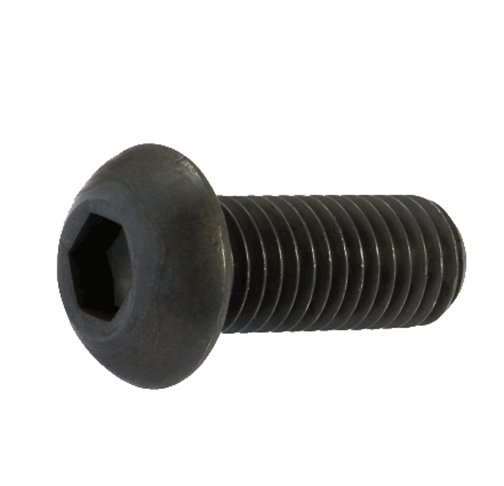

HEXAGON SOCKET BUTTON HEAD SCREW - DIN 7380


GRADE 10.9 – BS 4168 – ISO 7380 Stainless Steel Gr A2 (304) – A4 (316)

FINISH Black, Electro Galvanized

SERIES Metric, UNC, UNF inch


Diameter Length (mm)
M3 4, 8 x12
M4 5 x 30
M5 10 x 30
M6 8 x 30
M8 10 x 30, 40
M10 16 x 40
M12 20 x 50

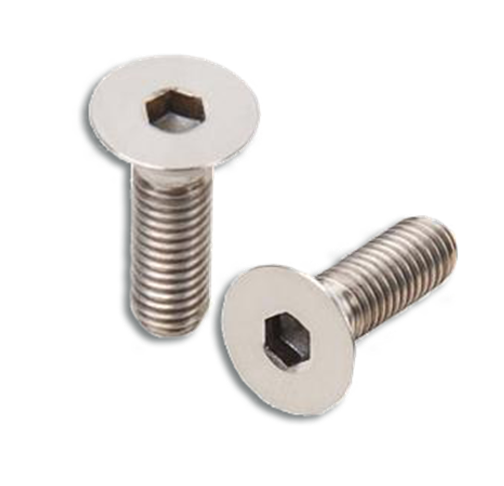

HEXAGON SOCKET COUNTERSUNK HEAD SCREW - DIN 7991


GRADE 10.9 – BS 4168 – ISO 7380 – Stainless Steel GR A2 (304) – A4 (316)

FINISH Black, Electro Galvanized

SERIES Metric, UNC, UNF inch

Diameter Length (mm)
M3 6 x 12,16 x 30 (Hex Key 2.5mm)
M4 6 x 45 (Hex Key 3mm)
M5 6 x 50 (Hex Key 4mm)
M6 8 x 12, 16 x 55 (Hex Key 5mm)
M8 10 x 70 (Hex Key 6mm)
M10 12, 16 x 100 (Hex Key 8mm)
M12 20 x 120 (Hex Key 8mm)
M16 30 x 100 (Hex Key 10mm)
M20 30 x 100, 130 x 200 (Hex Key 12mm)
M24 100 x 120, 150 x 200 (Hex Key 14mm)

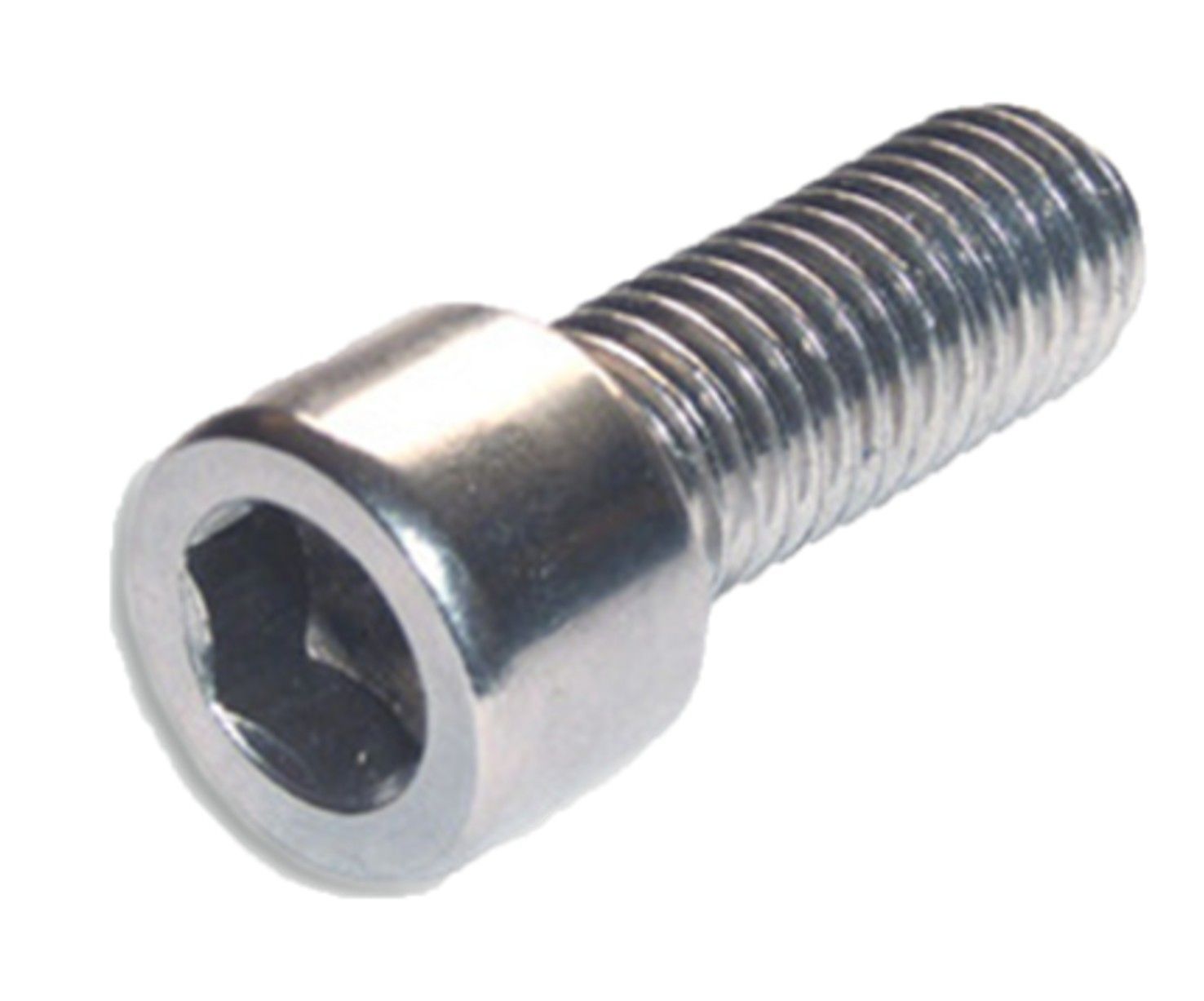

HEXAGON SOCKET HEAD CAP SCREW - DIN 912


GRADE 12.9 / 8.8 – BS 4168 – ISO 7380 – Stainless Steel

Gr A2 (304) – A4 (316)

FINISH Black, Electro Galvanized

SERIES Metric, UNC, UNF inch

Diameter Length (mm)
M3 5 x 20, 30 x 40 (Hex Key 2.5mm)
M4 5 x 20, 30 x 50 (Hex Key 3mm)
M5 6 x 20, 30 x 120 (Hex Key 4mm)
M6 8 x 20, 30 x 120 (Hex Key 5mm)
M8 10 x 150, 180 (Hex Key 6mm)
M10 10 x 200 (Hex Key 8mm)
M12 12 x 200 (Hex Key 10mm)
M14 25 x 150 (Hex Key 12mm)
M16 25 x 160, 180 x 240 (Hex Key 14mm)
M18 30 x 160 (Hex Key 14mm)
M20 30 x 240 (Hex Key 17mm)
M22 50 x 240 (Hex Key 17mm)
M24 50 x 160, 180 x 240 (Hex Key 19mm)
M30 60, 70, 80 x 160, 180 x 400 (Hex Key 22mm)
M36 75, 100 x 120, 140 x 160, 180 x 400 (Hex Key 27mm)
M42 150 x 170, 300 x 400 (Hex Key 32mm)

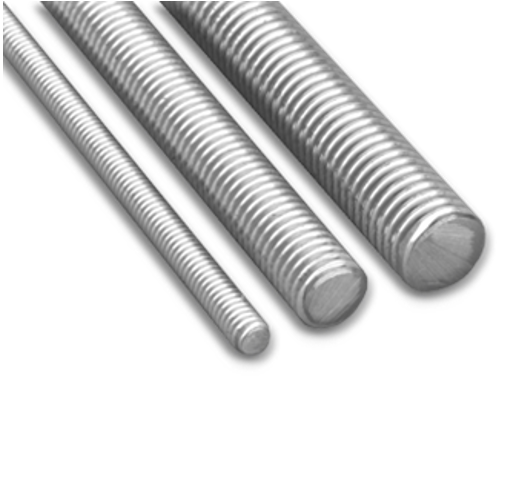

THREADED RODS - DIN 975


GRADE 8.8 – BS 4168 – ISO 7380

FINISH Mild Steel Black, Nylon, Electro Galvanized, Hot Dipped Galvanized

SERIES Metric, UNC, UNF inch


Threaded Rod – 1m length

Size Mild Steel Black Mild Steel Galvanized EN8 Gr 8.8 Stainless Steel Gr 304 Stainless Steel Gr 316
M4 * *
M5 * * *
M6 * * * * *
M8 * * * * *
M10 * * * * * *
M12 * * * * *
M14 * * * *
M16 * * * * * *
M18 * * *
M20 * * * * * *
M24 * * * * *
M27 * * *
M30 * * * * *
M36 * * *
Size Mild Steel Black Mild Steel Galvanized Gr 8.8
M6 * *
M8 * *
M10 * * *
M12 * * *
M14 * *
M16 * * *
M18 * *
M20 * * *
M24 * *
M27 * *
M30 * * *
M36 * *


Threaded Rod – 3m length

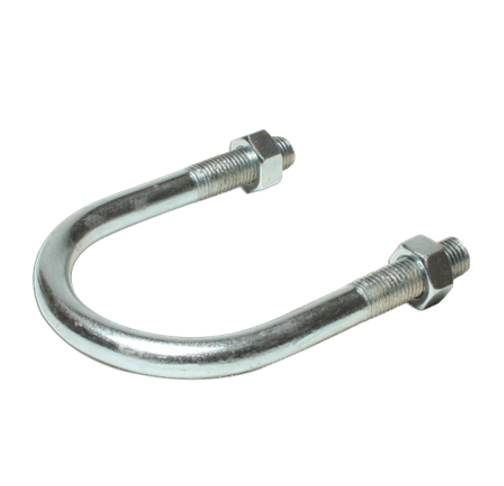

U BOLTS

To Fit Various Pipe Diameters, Various Thread Lengths

DIN 3570

FINISH Black, Electro Galvanized



Diameter M6 / M8 / M10 / M12 / M16 / M20 / M24
